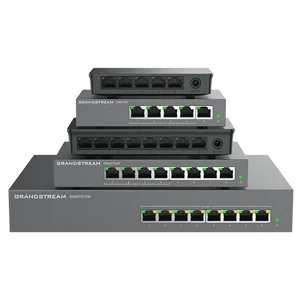

The GWN7700 series are unmanaged switches that provide a fast and cost-effective way to add high-speed Gigabit connectivity to offices and small/medium businesses. It offers a desktop and wall-mountable design with no configuration or installation required.

Each port is compatible with the link speed of any 10/100/1000 Mbps network device of the GWN7700 series and allows intelligent tuning for optimal performance. PoE models provide IEEE 802.3af/at compliant, intelligent dynamic PoE throughput ports to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints.



Product Brochure
SKU: 78abece42c15-1 Category:

Description

  • 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
  • Green technology reduces power consumption
  • LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
  • Auto MDI/MDIX crossover for all ports
  • 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/GWN7701PA/GWN7702P only)
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Supports long cable connection
  • QoS – Supports Default Strict Priority when present
